EasyStand Evolv Standing Frame - Adult Sit-to-Stand Standers & Lifts

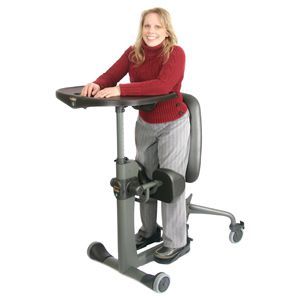

EasyStand Evolv Adult

Exclusive to Altimate Medical, the EasyStand Evolv provides the user with state-of-the-art Active Standing technology that can be found in no other stander. Optimal standing position is perfected by strategically placing the pivot points of the stander to mimic the body's natural points.   Safety frame provides a supportive transition to standing in three easy steps: adjust, transfer, and pump up. The open frame allows allows for easier transfers and the positive lock foot plates ensure security.

Features:

• Precise back angle adjustments
• 5" total lock casters
• Modular base
• Flip-up adjustable knee pad
• Simple tray adjustments
• Extra wide contoured seat
• Tool-free seat depth adjustment

Basic Unit:

• Height Range 5'0"-6'2" 152-188cm
• Weight Limit 280 lbs. 127kg
• Seat Depth Range (from seat pivot) 16”-21” 41-53cm
• Seat to Footplate Range (from seat pivot) 14”-21” 36-53cm
• Knee Width (center to center) 9” 23cm
• Kneepad Depth Range (from seat pivot) 3.5”-5.75” 9-15cm
• Seat Height 21.5” 55cm
• Standard Tray Size 21”x24” 53x61cm
• Tray/Chest Pad Depth Range (from seat pivot) 0”-10.5” 0-27cm
• Standard Tray Height Range (from seat pivot) 15.5”-30.5” 39-77cm
• Footprint (caster to caster) 25”x33” 64x84cm
• Weight of Basic Unit 104 lbs. 47 kg.
• Frame Color Charcoal
• Locking Caster Diameter 5" 13cm
• Footplates-Plantar 10 degrees in 3 increments (not Glider)
• Footplates-Dorsi 10 degrees in 3 increments (not Glider)
• Footplates- Toe-out 15 degrees in 3 increments (not Glider)
