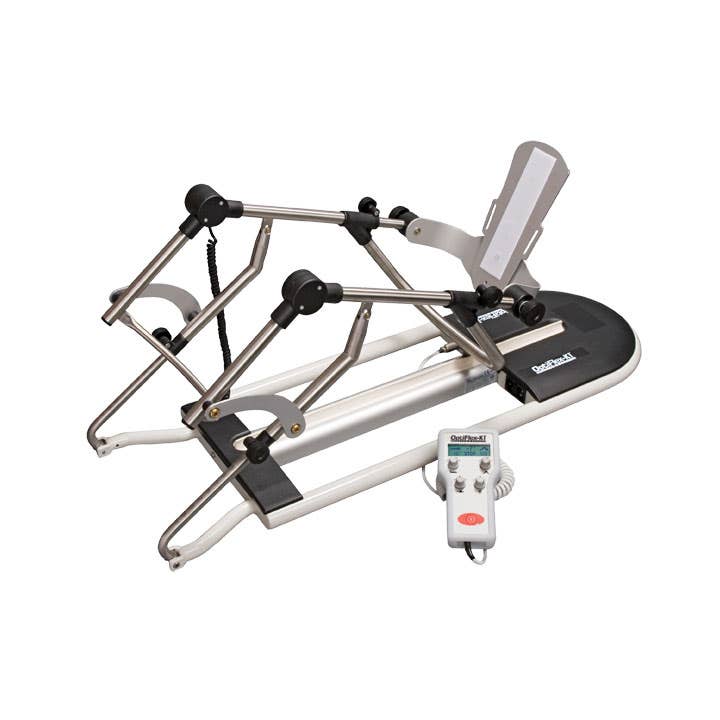

Optiflex-K1™ Knee CPM Unit with Classic Pendant
Continuous Passive Motion is a postoperative procedure designed to aid in the recovery after joint surgery. After extensive joint surgery, if a patient fails to move their joint, the tissue around the joint will become stiff and scar tissue will form, resulting in a joint with limited range of motion, which often takes months of physical therapy to recover. OptiFlex-K1 Knee CPM has interchangeable hand controls for maximum versatility.
Features and Benefits
- Weighs just 23 lbs (10.4 kg), making it the lightest knee CPM on the market
- Only 38 inches (97 cm) long
- Wide low-profile, closed-base frame for stability
- Faster motor speed
- Single screw drive
- Reversible footplate for shorter legs
- ROM -10 to 120
- On-board power supply
- Patient lockout feature
- Accommodates patients 4 ft to 6.6 ft (1.2 m - 2 m)
- Two-year warranty
Technical Specifications
- Knee Flexion: 120°
- Knee Extension: -10°
- Speed: 25° - 180°/minute
- Pauses: 0 - 59 seconds
- Force Reversal: 45 Kp of force* (built in)
- Patient Height: 4 - 6.5 ft (1.2 - 2 m)
- Calf Length Range: 10" - 22" (25.4 - 55.9 cm)
- Thigh Length Range: 12" - 19" (30.4 - 48.2 cm)
- Mains Power: 100V-240V, AC 50-60Hz
- Unit Weight: 23 lb (10.4 kg)
- Shipping Weight: 54 lb (24.5 kg)
- Dimensions: 38" x 14" x 9" (97 cm x 36 cm x 23 cm)
- Electrical Safety Class: Class 1, Type B
- Safety Tests: IEC 60601, 1:1988 +A1:1991, +A2:1995, CAN/CSA C22.2 NO 601.1 M90, ANSI/UL 60601-1, IEC 60601-1-2, IEC 60601-1-4, ISO 14971, ISO 10993-1
Hand Controller Functions
| Function | Classic Hand Control | Standard Hand Control | Comfort Hand Control |
| Key Lock Function | Yes | Yes | Yes |
| Pauses | Yes | Yes | Yes |
| Speed | Yes | Yes | Yes |
| Timer | No | Yes | Yes |
| Reverse on Load | No | Yes | Yes |
| Warm up Protocol | No | Yes | Yes |
| Default Setting | No | Yes | Yes |
| Transport Setting | No | Yes | Yes |
| Chip Card Selectable | No | Yes | Yes |
| EROM Repeat | No | No | Yes |
| Stretch Protocols | No | No | Yes |
| Workout Protocol | No | No | Yes |
| Comfort Protocol | No | No | Yes |
| Therapy Documentation | No | No | Yes |
| EMS Control | No | No | Yes |
| Body Part | Knee |
|---|
