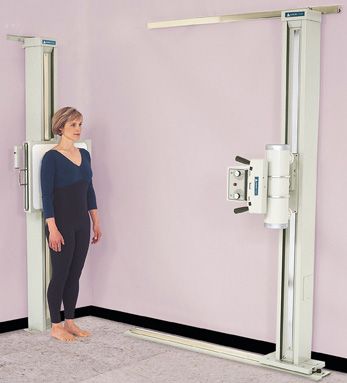

Summit 500mA 14" x 17" High Frequency X-Ray System #3

• 30 kW power rated Generator
• Technique selection: Anatomical programming or mAs and kVp option.
• kVp range: 40 – 125
• mA range: 50 – 500, eight stations
• mAs range: .05 – 420
• Microprocessor control
• Digital display of mAs, mA and kVp
• Built-in tube protect system
• 50 ft. interconnect cables
• UL classified
• Operates from 230-250 VAC single phase / 100 amp electrical service

Tubestand

• Floor-to-wall or ceiling mount tubestand with 5’ rails
• 10" tubearm
• Angulating tube mount, dial indicator and operator handgrips

Wallstand

• Floor-to-wall, stationary front, full-length vertical structure or Single Column stand
• Electric locks
• 17" x 17" Grid cabinet, 10:1, 103 line grid
• Heavy duty cassette tray

• .06-1.5mm focal spots at 200,000 KUH

• Manual certified light field
• Swivel mount with laser light centering

• 15' high voltage

• 5 years on x-ray parts
• 5 year pro-rated on x-ray tube
• 2 years on collimator parts
