Twin Stim Plus 3rd Edition - Roscoe Medical Portable TENS Unit
Item Number:
670 0131
$225.97
In stock
Estimated Shipping Price
Shipping Surcharge
Subtotal with Surcharge
Shipping information
Est. Domestic Shipping Content
Subtotal with Shipping
Shipping Message
Description
Twin StimTM Plus 3rd Edition
A portable electrotherapy device combining four stimulation programs: TENS, EMF, IF (interferential) and Russian- can be used for muscle stimulation and pain relief. The Twin StimTM Plus unit contains four controllable an independent output channels giving you the best chance for treating patients that need something stronger than TENS therapy alone. Additionally, with four channels, patients are able to treat large areas like the entire back or multiple treatment sites at the same time. Great for muscle re-education and to help reduce inflammation and edema.
Features:
- Adjustable ramp time
- Large LCD display
- Two treatment timers
- Patient compliance meter to store operation records
- 1 year warranty

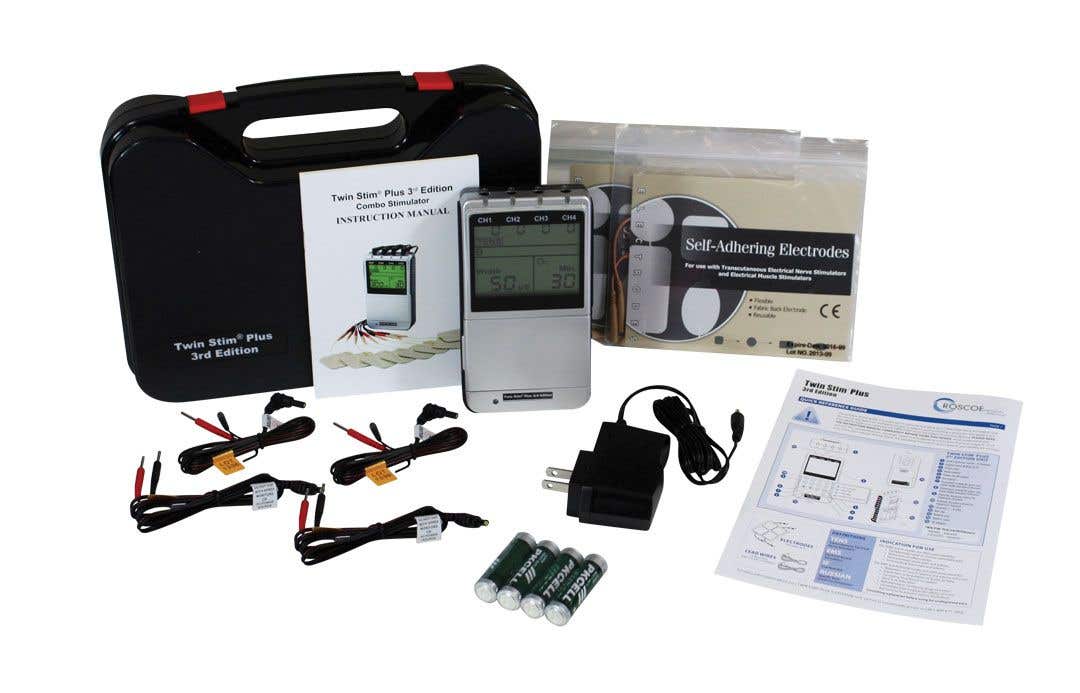

Includes:
- Carry case
- 4 sets of lead wires
- 4 AA batteries
- AC adapter
- 2 Packs of 4 self-adhesive reusable electrodes
- Manual
Specifications:
| Mechanism | Technical Description |
| Channel | Four, isolated between channels |
| Output Intensity | 0~40Vpp (at 500 ohm load) |
| Waveform | Bi-Phasic Square Pulse |
| Power Source | DC 6V, 4xAA 1.5V battery or AC adapter output: DC 9V, 800mA |
| Dimensions | 5.4" x 3.1" x 1.1" |
| Weight | 1 lb with battery |
| Pulse Rate | IF: 400Hz~4150Hz Russian: Fixed rate: 2500Hz; Burst rate: 20Hz~80Hz |
| Pulse Width | 50µs~300µs |
| On Time | Adjustable, 2~90 seconds, 1 sec/step |
| Off Time | Adjustable, 0~90 seconds, 1 sec/step |
| Ramp Time | Adjustable, 1~8 seconds, 1 sec/step ("on" time will increase and decrease the setting value) |
| Treatment Time | Two adjustable timers, from 1 to 60 minutes or continuous. Adjustable in 1 minute each step from 1 to 15 minutes, and 5 minutes each step from 15 to 60 minutes. Treatment time counts down automatically. |
| Patient Compliance Meter | tores 60 sets of operation records. Total recorded time is 999 hours |
More Information
| Brand Name | Roscoe Medical - Compass Health |
|---|
