Details

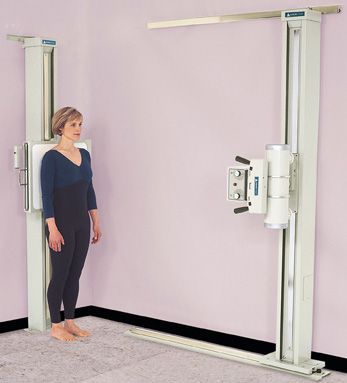

Summit 300 mA 14" x 17" High Frequency System #2
30 kW power rated generator
Specifics
30 kW power rated generator
Specifics
- mAs and kVp option
- kVp range: 40-125
- mA range: 50-300, six stations
- mAs range: .05-420
- Microprocessor control
- Digital display of mAs, mA and kVp
- Built-in tube protect system
- 50 ft. interconnect cables
- UL classified
- Operates from 230-250 VAC single phase/100 amp electrical service
- Floor-to-wall or ceiling mount tubestand with 5' rails
- 10" tubearm
- Angulating tube mount, dial indicator and operator handgrips
- Floor-to-wall
- Stationary front
- Full-length vertical structure of single column stat with electric locks
- 17" x 17" grid cabinet, 10:1, 103 line grid with heavy duty cassette tray
- 1.0-2.0mm focal spots @ 140,000 KUH
- Manual certified light field
- Swivel mount with laser light centering
- 15' high voltage cables
- 5 years on x-ray parts
- 5 year pro-rate on x-ray tube
- 2 years on collimator
