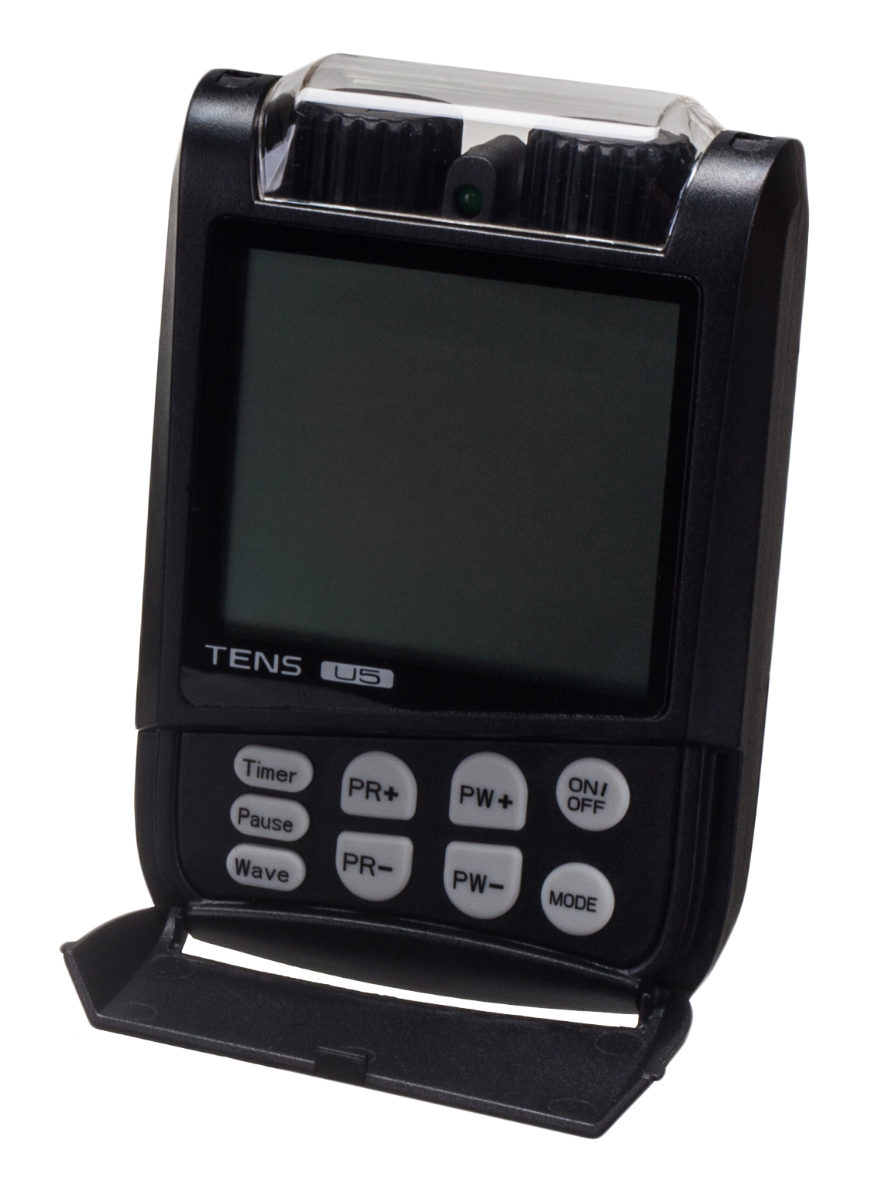

Ultima 5 Digital TENS Unit with Timer

Features:

• Electrodes: 2" x 2", 4/pkg
• Channel: Dual
• Output: Maximum 150 mA (peak value) across 500 Ohm load
• Pulse Width: 50 - 250 µS (adjustable)
• Pulse Rate: 1 - 150 Hz (adjustable)
• Wave Form: Symmetrical Bi-phasic rectangular & Mono-phasic rectangular
• Mode: Constant, Burst 1, Burst 2, Module 1, and Module 2
• Burst 1 Mode: Two train per second, 250 ms on 250 ms off; 25 pulses within 1 train, pulse width = 200 µs
• Burst 2 Mode: Two train per second, 250 ms on 250 ms off; Pulse width and pulse rate are selectable
• Module 1 Mode: Pulse width modulated from 100 - 250 µs within 6 seconds and then back to 100 µs in the next 6 seconds. Pulse rate is selectable
• Module 2 Mode: Pulse rate and pulse width modulation; frequency increases from 50 Hz to 100 Hz while pulse width decreases from 200 - 60 µs within 5 seconds
• Timer: 15, 30, 45, 60 minutes, continuous
• Display: 52.5 mm x 35.8 mm LCD
• Power Source: 2 AA batteries

Includes:

• One pack of 4 electrodes
• User Manual
• Carrying case

*This item must be ordered by a licensed healthcare professional.*
