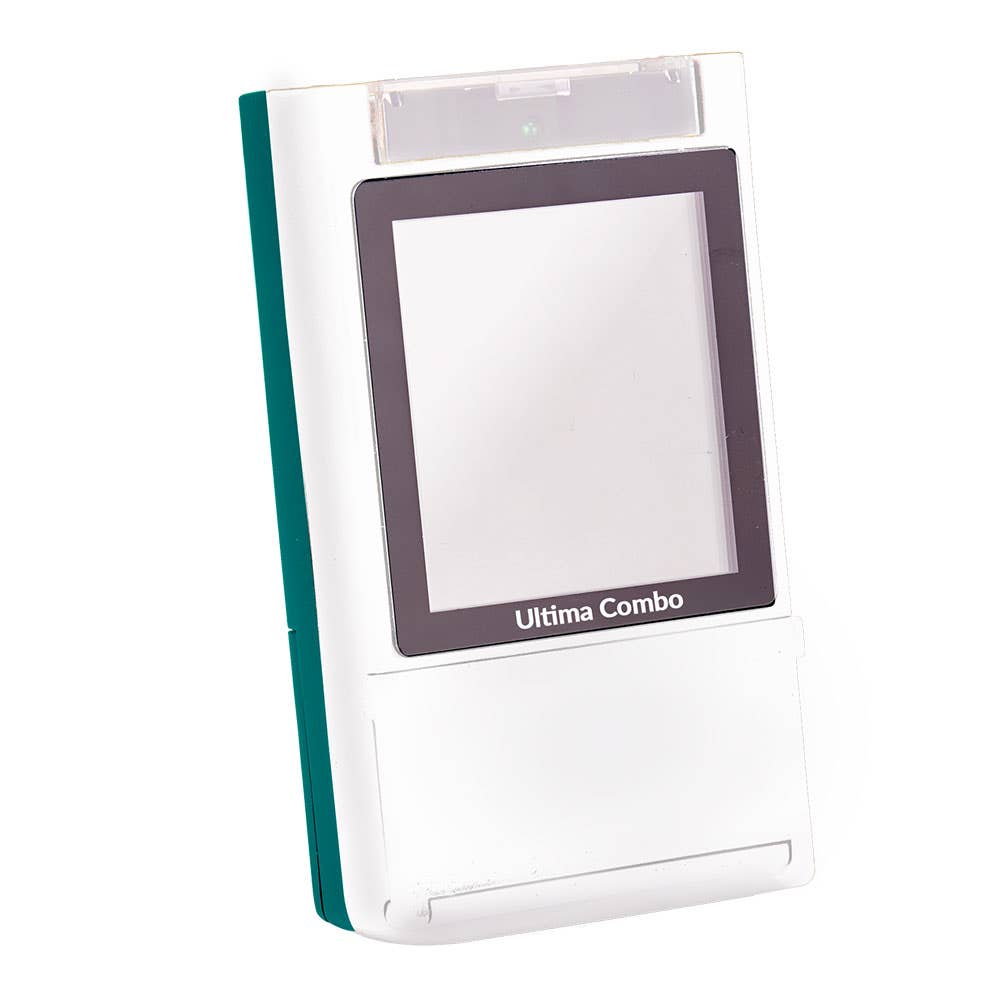

Ultima Combo Dual Channel TENS and EMS Unit

Ultima Combo Unit

This Dual Channel TENS and EMS Unit has adjustable settings, 34 modes and on-the-go capabilities

Features

• Digital LCD Screen Display
• 34 TENS and EMS Modes
• Adjustable Manual Modes
• Low Battery Indicator
• LED Backlight
• Digital Body Part Diagram

Package Includes

• Ultima Combo Unit
• Self-Adhesive Electrodes
• 2 Lead Wires
• AA Batteries
• Instruction Manual

Technical Specifications:

• Channel: Dual Channels
• Output: Maximum 130 mA (peak value) across 500 Ohm load
• Pulse Width: 50µs - 400µs, adjustable
• Pulse Rate: 1 Hz - 150 Hz, adjustable

• Waveform:
  • Symmetrical Bi-phasic Rectangular
  • Asymmetrical Bi-phasic Rectangular
  • Monophasic Rectangular
  • Alternated Bi-Phasic Rectangular

• Mode: (34 Total Modes)
  • 12 Preset TENS Modes
  • 8 Manual TENS Modes
  • 10 Preset EMS Modes
  • 4 Manual EMS Modes

• Ramp Time: 0 - 5s, in steps of 1s
• On time: 1 - 60s, in steps of 1s
• Off time: 0 - 60s, in steps of 1s

• Timer:
  • TENS: Continuous, 15, 30, 45, 60, 90 minutes
  • EMS: Continuous, 10, 20, 30, 45, 60, 90 minutes
